How to Build a Backyard Observatory

There’s a moment every observatory builder describes the same way. The concrete has cured, the roof rolls back for the first time, and the telescope that used to live in a closet is suddenly standing under the open sky — aligned, cabled, ready — and it never has to be carried anywhere again. From that night on, astronomy stops being an event you stage and becomes something you just walk out and do.

Getting there is a real construction project, but a modest one — closer to building a deck than building a house. Thousands of amateurs have done it with ordinary tools, a free weekend or five, and $2,500–7,000 for the structure. This guide is the build itself: the design choice, the site, the pier, the sequence, and what goes inside. For where every dollar lands, our observatory cost breakdown is the companion page.

The pier is the one part of the build you can’t fix later. Pour it separate from the floor, pour it deep, and never let it touch the deck you walk on.

Outer Space Trip may earn a commission from some links on this page, at no extra cost to you. Much of this gear sells through specialist astronomy retailers rather than Amazon — here’s how we choose. Prices are approximate and move with the market.

Step zero: pick the design

Nearly every backyard observatory is a roll-off roof or a dome, and the choice shapes everything after it.

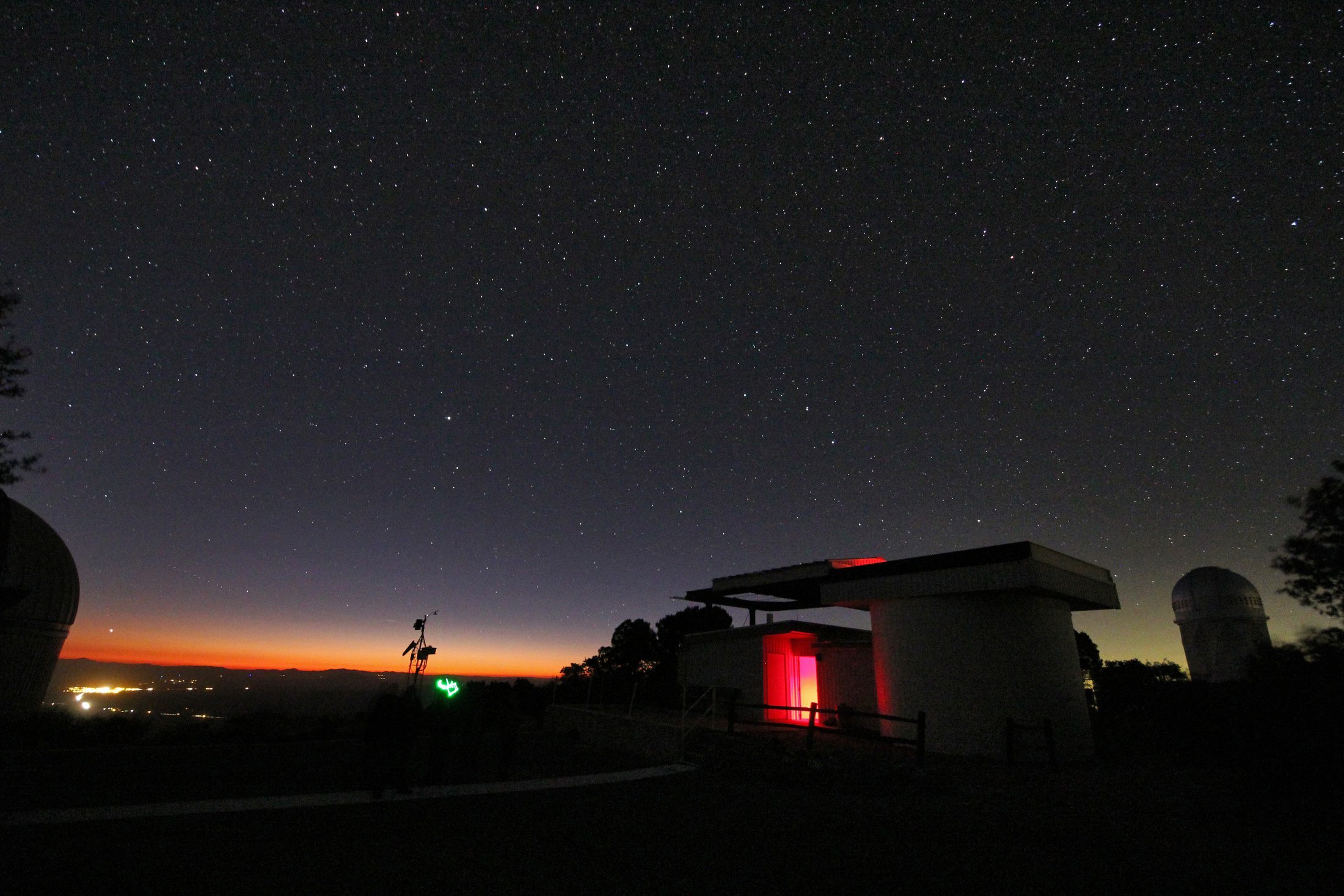

Build a roll-off if you’re building from scratch. It’s a shed whose roof slides onto a freestanding rail structure, opening the whole sky at once. The carpentry is honest weekend work — square walls, a rail, garage-door rollers or V-groove wheels — and materials run $1,000–2,500. It also reads as a normal garden shed, which matters for permits and HOAs.

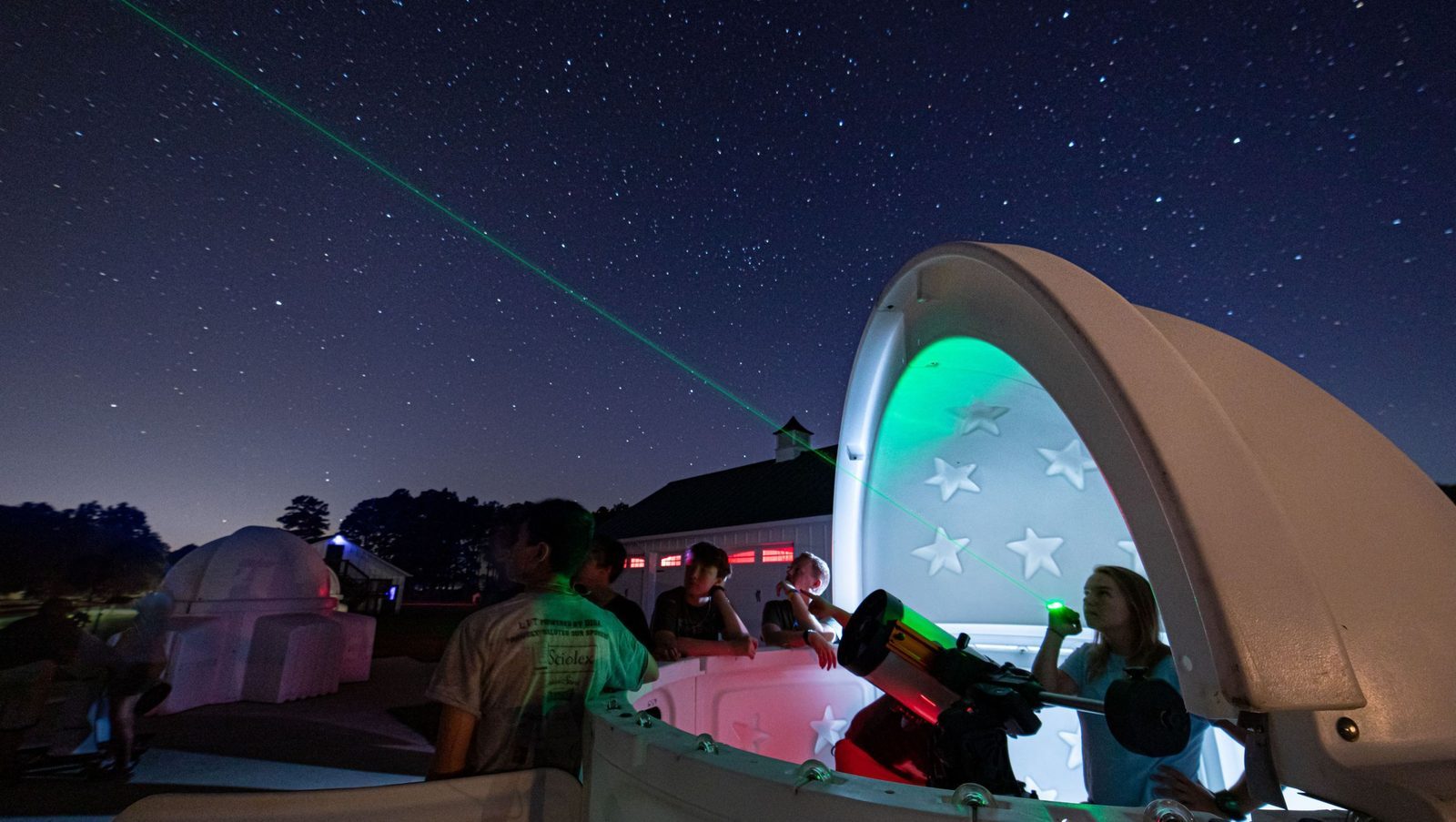

Buy a dome kit (SkyShed POD, NexDome, ExploraDome; roughly $3,000–7,000) if your site is windy, badly light-polluted, or you’re heading toward remote operation — the rotating shell shields the scope and only ever exposes a slot. Assembly is bolt-together rather than carpentry. Almost nobody should scratch-build a dome; a rotating hemisphere is the hard version of the project.

Pick the site before you buy anything

Spend two or three clear nights in the yard before committing concrete to a spot. You’re looking for four things:

• The southern sky. In the Northern Hemisphere, planets, the Moon and most deep-sky targets parade across the south. A tree line or house blocking your south horizon costs more objects than one blocking the north.
• Distance from heat. Roofs, driveways and dryer vents shed shimmering warm air for hours after sunset. Get the pier away from them — heat waves ruin high-magnification views as surely as clouds.
• A reasonable power run. You’ll want real electricity eventually, not an extension cord. Every extra meter of trench is money; 10–20 m from the house is the usual sweet spot.
• Neighbors’ lights. Note where porch lights and street lamps sit. Walls block low stray light — one reason a dome or a taller roll-off wall earns its keep on a small suburban lot.

The build, in order

The sequence below is the one that avoids re-doing work. Each step is ordinary DIY; only the pier rewards obsessive care.

1. Check permits and HOA rules first. A low roll-off shed under your local size threshold (often 100–120 sq ft) frequently needs no permit at all. Domes and anything with trenched electrical usually do. An afternoon of reading beats a tear-down order — our cost guide covers the HOA question in more depth.
2. Pour the pier footing — isolated. Dig below your frost line (a meter is common), drop in a sonotube with rebar, set J-bolts for the pier, and pour. The footing must never touch the floor or walls: an isolated pier is the difference between 5-minute exposures and star trails every time you shift your weight.
3. Build the floor around the pier. A raised wood deck or a slab with a gap collar around the pier tube both work. Leave a finger-width gap — foam backer rod keeps mice out without coupling vibration.
4. Frame the structure. For a roll-off: standard shed framing, walls typically 1.2–1.5 m so they clear the scope on the pier while still blocking wind and porch lights. For a kit dome: assemble per the manual onto your slab or ring wall.
5. Fit the roof and rails. The roll-off roof rides on angle-iron or V-track rails onto a freestanding outrigger frame. Garage-door rollers, a gentle rail slope away from the building, and hold-down latches for wind are the standard recipe. This is the fussiest carpentry of the project — dry-fit everything.
6. Run power and cabling. Trenched, conduit-protected mains with a small sub-panel is the proper job (this is the step to hire an electrician for). Add a couple of switched circuits: mount and cameras on one, dew heaters and a red work light on another. A dab of ethernet or good wifi finishes it.
7. Mount the rig and align it. Bolt the pier adapter to the J-bolts, level the mount, and do a proper polar alignment — the one you’ll never have to repeat. That permanence is the whole payoff: it’s why an observatory turns a 45-minute setup into a 5-minute one.

The rig that goes inside

A permanent home changes the gear math: you’re done carrying weight, so capacity and tracking are all that matter. The mount comes first — it’s the component an observatory is really built around. The Sky-Watcher EQ6-R Pro (around $1,600) is the classic pier-mounted workhorse, and our telescope mount guide walks the full ladder above and below it. Add a controller like the ZWO ASIAIR and the building starts working for you — sessions run from the couch, and a full remote setup stops being exotic.

For the telescope and camera the right order is: bring what you have, upgrade the mount first, and grow into the pier. Our astrophotography setup guide itemizes complete rigs at $500, $3,000 and $10,000, and the camera guide covers the cooled-sensor step when you’re ready.

Or skip the construction entirely

Be honest with yourself about which problem you’re solving. If what you want is the sky tonight rather than a building project, the money goes further in the eyepiece. A $300–500 beginner telescope shows Saturn’s rings and Jupiter’s cloud bands from the same backyard with zero concrete, and an all-in-one like the Celestron Origin is a self-aiming, self-imaging “observatory in a tube” you set on the lawn. Our smart telescope guide compares the field. The building earns its concrete when the setup tax — not the gear — is what’s keeping you inside.

The bottom line

Build a roll-off from scratch if you like carpentry and want the $1,000–2,500 version; bolt together a kit dome if wind, lights or remote operation argue for it. Site it with a clear south horizon away from warm roofs, pour the pier isolated and deep, follow the seven steps in order, and put your best money in the mount. Do it right and the reward compounds for a decade: every clear night becomes usable, and the hardest part of astronomy — starting — disappears.
